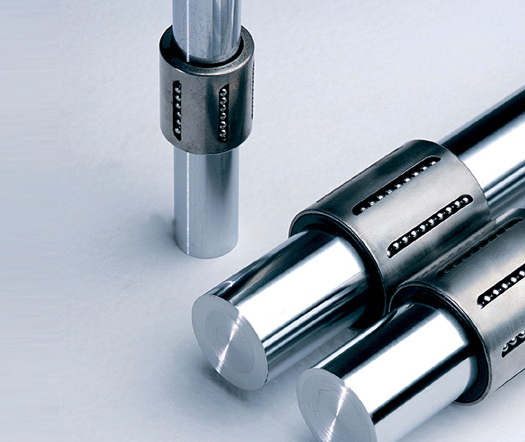

Hard Chromium Plated Bar
Hard Chromium Plated Bar
European Special Alloys W.L.L. is a trusted name in the supply and export of Hard Chromium Plated Bars, designed to meet the demanding needs of various engineering and industrial applications. Manufactured with superior precision and advanced technology, these bars are widely used for hydraulic cylinders, machine components, and applications requiring high wear resistance and durability. With standard production in Ck45 and additional options such as 20MnV6, Cf53, 42CrMo4, and 100Cr6, customers have access to a wide selection tailored to performance requirements. Stainless steel grades including AISI 420, AISI 431, AISI 305, and AISI 316 are also available on request, making the product range versatile and suitable for specialized industries.
Our Hard Chromium Plated Bars are available in diameters ranging from 6 mm to 350 mm, with standard production covering 6 mm to 127 mm and extended ranges up to 350 mm on request. They are manufactured to precise tolerances (ISO f7, ovality ISO f7/3) ensuring consistent quality and performance. The bars are supplied in standard lengths of 5.5 m to 6.5 m, with extended lengths of up to 17 m available on demand. With exceptional straightness (0.05/1000) and superior surface finish, European Special Alloys W.L.L. delivers products that combine reliability, strength, and precision to meet global engineering standards.
Standard Specification
| Specification | Details |
|---|---|
| Standard Production | Ck 45 |
| By Request | 20 Mn V6, Cf 53, 42Cr Mo 4, 100Cr6 |
| Also Available by Request (Stainless Steel) | AISI 420, AISI 431, AISI 305, AISI 316 |
| Diameter Range | 6 mm to 350 mm |
| Diameter Tolerance | ISO f7, Ovality ISO f7/3 |
| Standard Production Range | 6 mm – 127 mm |
| Production Range by Request | 130 mm to 350 mm |
Standard production includes imperial and metrics sizes.
| METRIC Sizes as Follow: | ||
|---|---|---|
| 6mm | 8mm | 10mm |
| 12mm | 14mm | 15mm |
| 16mm | 18mm | 19mm |
| 20mm | 22mm | 24mm |
| 25mm | 28mm | 30mm |
| 32mm | 35mm | 36mm |
| 38mm | 40mm | 42mm |
| 45mm | 48mm | 50mm |
| 55mm | 56mm | 60mm |
| 63mm | 65mm | 70mm |
| 75mm | 80mm | 85mm |
| 90mm | 95mm | 100mm |
| 105mm | 110mm | 115mm |
| 120mm | 125mm | 130mm |
| 140mm | 150mm | 160mm |
| 180mm | 200mm | - |
| IMPERIAL Sizes as Follow: | ||
|---|---|---|
| ¼ (6.35 mm) | 3/8 (9.525 mm) | ½ (12.7 mm) |
| 5/8 (15.875 mm) | ¾ (19.05 mm) | 1 inç (25.4 mm) |
| 1 ¼ (31.75 mm) | 1 3/8 (34.925 mm) | 1 ½ (38.1 mm) |
| 1 5/8 (41.275 mm) | 1 ¾ (44.45 mm) | 2 inç (50.8 mm) |
| 2 ¼ (57.15 mm) | 2 ½ (63.5 mm) | 2 ¾ (69.85 mm) |
| 3 inç (76.2 mm) | 3 ¼ (82.5 mm) | 3 ½ (88.9 mm) |
| 3 ¾ (95.25 mm) | 4 inç (101.6 mm) | 4 ½ (114.3 mm) |
| 5 inç (127 mm) | - | - |
| Hard Chromium Plated Bars Specifications | |
|---|---|
| Length of Bars | |
| Standard Length | 5.5 m – 6.5 m |
| Max Length (By Request) | 17 m |
| Straightness | 0.05 / 1000 |
| Hard Chromium Plating | |
| Wall Thickness | Min 20 Micron |
| Double Chromium Plating | Crack Free Layer 10 mic + 20 mic Micro-Cracked (1000 Vickers) |
| Chromium Thickness Hardness | 850 Vickers – 1150 Vickers |
| Roughness | Ra 0.15 – 0.25 mic |
| Hard Chromed Rods | |
|
|
| Induction Hardened Bars | |
| Hardness | 850 Vickers – 1150 Vickers |
| Two types of products: | |
| Hydraulic Cylinders | Main Material: CK45 Diameter: 10 mm – 200 mm Standard Length: 6 m By Request: 2 m – 17 m can be hardened |
| Ball Bearings | Main Material: Cf53 Diameter: 6 mm – 120 mm Longer bars & larger diameters available on request |
